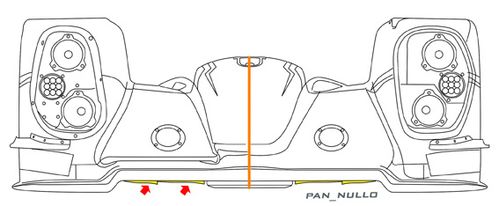

toyota ts040

_two flaps in the tunnel between the front fender and the side pod

Toyota ts040 Front LOW









porsche 919 h underbody view

_the edge of front floor is not linear (aero solution underfloor)

Porsche 919 Hybrid Underview LOW











porsche 919h  vs audi r18 h intake inside strakes

_left audi_:right porsche

Porsche919 Vs R18 Strakes LOW











porsche 919 h inner cooling duct

Porsche919 Inner Front LOW

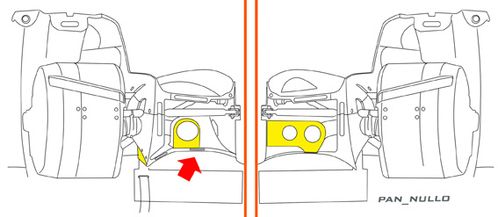

toyota ts040 front air brakes duct differences

_left open front nose car_right close front nose car

Toyota ts040 FDuct LOW

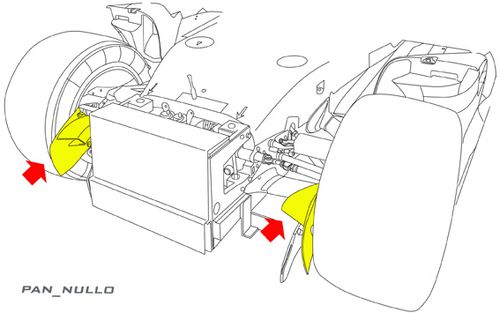

audi r18 2014 airbrakes duct is +/- same

Audi R18 HY Brakes Duct LOW









porsche 919 h brakes

 a double brakes cooling

classic duct (no  visible in the drawing) and an inlet in blade carbon fiber (yellow arrow)

nu strakes generation (red arrows)

Porsche 919 Hybrid FBreak LOWer









porsche 919 h sidepod holes

_flap inside and inlets for centraline?



PorscheLMP1 SidepodHole LOWER

tweet



    https://twitter.com/PorscheLMP1Fans









porsche 919 h rear fender

_flap inside fender

Porsche919 RearFender LOWer
